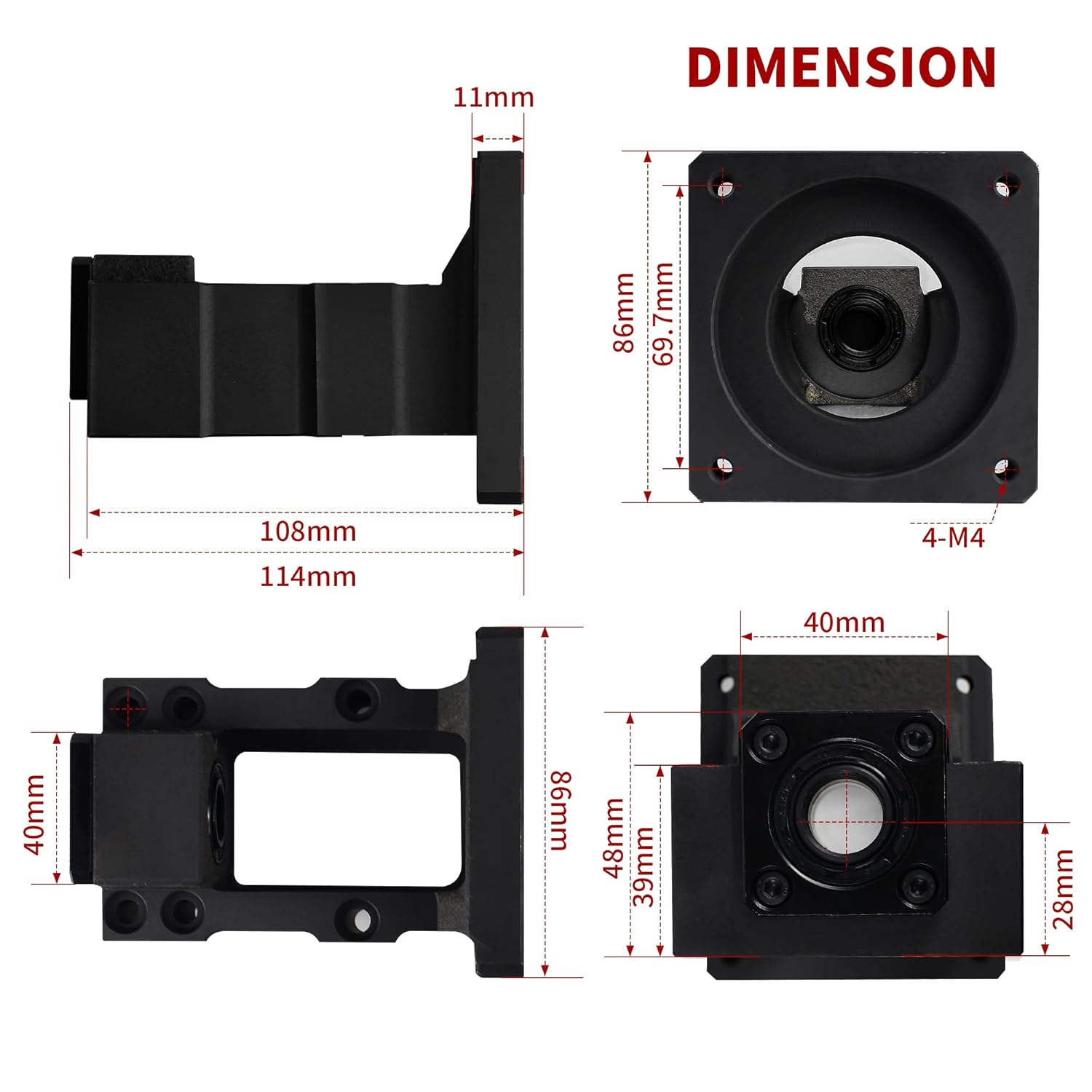

CNCTOPBAOS Nema34 Stepper Motor Steel Mounting Bracket,Integrated Motor with BK15 End Supports Bearing Mount Fixed Seat for 86mm Stepper Nema 34 and 20mm CNC Ballscrew SFU2005,SFU2010,SFU2020,SFU2040
Product details
| Management number | 210087639 | Release Date | 2026/04/02 | List Price | $15.30 | Model Number | 210087639 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Introduction:The bearing hole and the motor mounting stop are processed by the same process, the same clamping and the same tool, maximizing the coaxiality between the screw and the motor after installation
- Material:The bracket is made of high quality material, sturdy and durable,and used 6001 bearings
- Easy Installation:The motor bracket comes with nuts and screws for easy installation and fixing of the motor
- Application:This product is functionally equivalent the BK15 fixed bearing block end support for Ball Screw 20mm and fixed seat / motor bracket for 86mm Nema 34 Stepper Motor/Servo motor/SFU2005/SFU2010/SFU2020/SFU2040
- Advantages: The positioning hole of the integrated motor seat and the mounting hole of the bearing are processed in an integrated manner,Maximizing the four in one of motor shaft center, coupling shaft center, bearing hole shaft center, screw shaft center
| Model | 86 |
|---|---|
| Speed | 1 RPM |
| Brand Name | CNCTOPBAOS |
| Model Name | bk15 |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Material Type | Alloy Steel |
| Included Components | bracket |
